OVR10 – INFRARED OVEN POWER CONTROLLER
Blow-molding ovens power controller replacement for Olicorp®, Sidel® & Siemens® IR systems
Product Overview
The OVR10 is a high-performance power controller designed for infrared ovens in PET blow molding machines. Engineered and assembled by Technoplan Engineering SA, it offers a drop-in replacement for Olicorp® IRS10, PWR-SDL, Siemens® or Sidel® Universal and Matrix regulators — with zero PLC reprogramming required.
Plug. Connect. Optimize.
The OVR10 is ready to go out of the box.
Technical Features

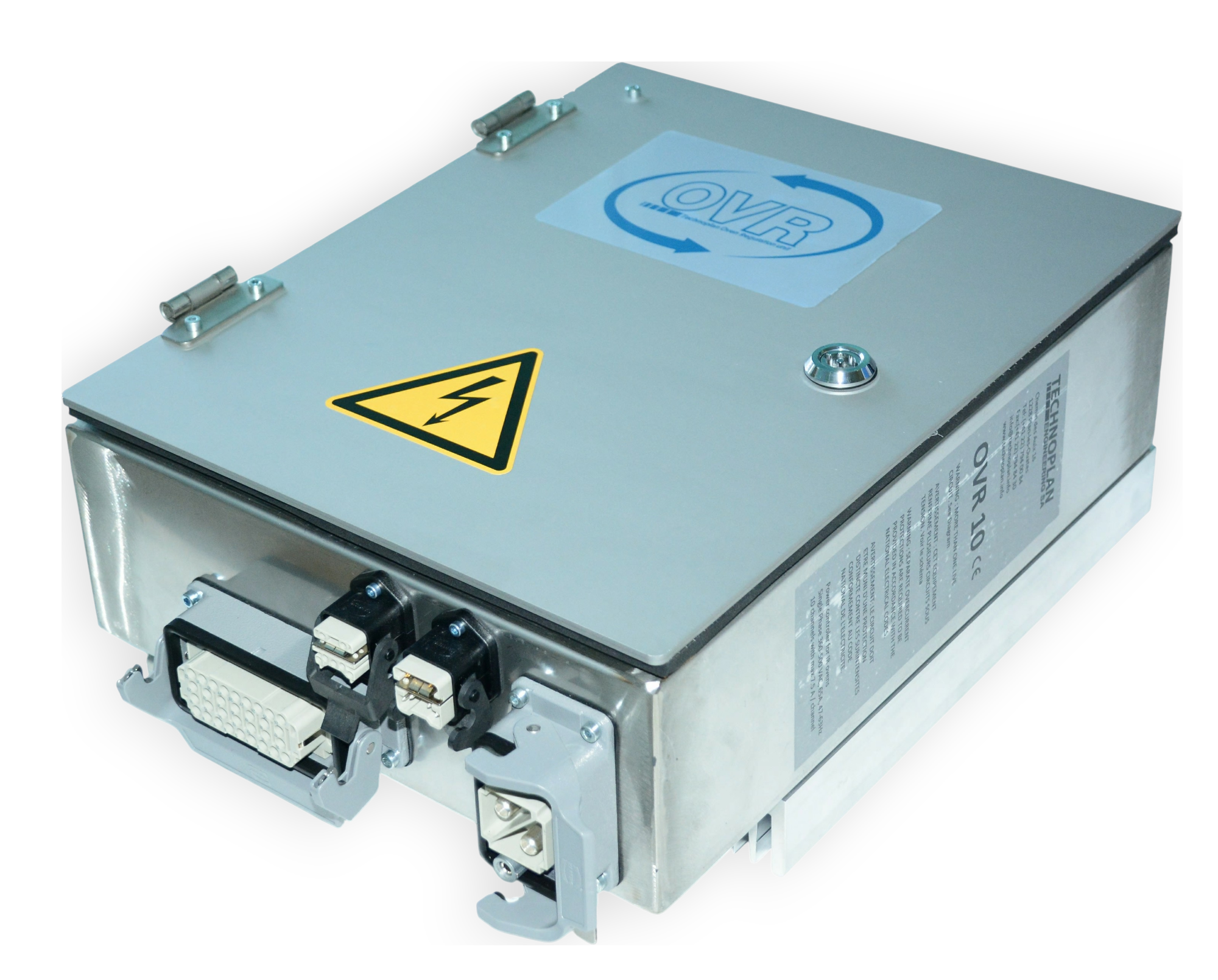

IP65-rated stainless steel enclosure (304L) – 380 x 300 x 170 mm
10 regulated outputs, individually protected (25 A fuses / 100 kA breaking capacity)
Input voltage: 2 phases + ground, 180–530 VAC (typ. 207–440 V), 47–63 Hz
Max current: 65 A
Integrated thyristor control
Fault detection: Broken lamp response < 200 ms
Modulation: Zero-crossing or half-phase selectable
Fieldbus: PROFIBUS DP slave (up to 12 Mbit/s), 24 VDC / 250 mA
Smart Compatibility
Directly replaces:
- Olicorp® IRS‑10 and PWR‑SDL
- Siemens® oven controllers
- Sidel® SBO Universal / Matrix (no wiring change)
Firmware options:
- Version 5.x → power regulation (standard ovens)
- Version 20.x → voltage regulation (Sidel® specific)
Rotary switches and GSD file simplify commissioning
Download : OVR10 – Full Technical Manual V 2.3
Product Demo
Feel free to contact us for any request. See you soon!
Interested in upgrading your oven line?
Our technical team will help you choose the correct configuration based on your OEM and oven layout.
